Boron nitride powder

Basic information

Boron nitride powder is a crystal of nitrogen and boron atoms with four different variants: hexagonal boron nitride (H-BN), rhombic boron nitride (R-BN), cubic boron nitride (C-BN) and fibrinite boron nitride. The following mainly introduces two crystal structure products.

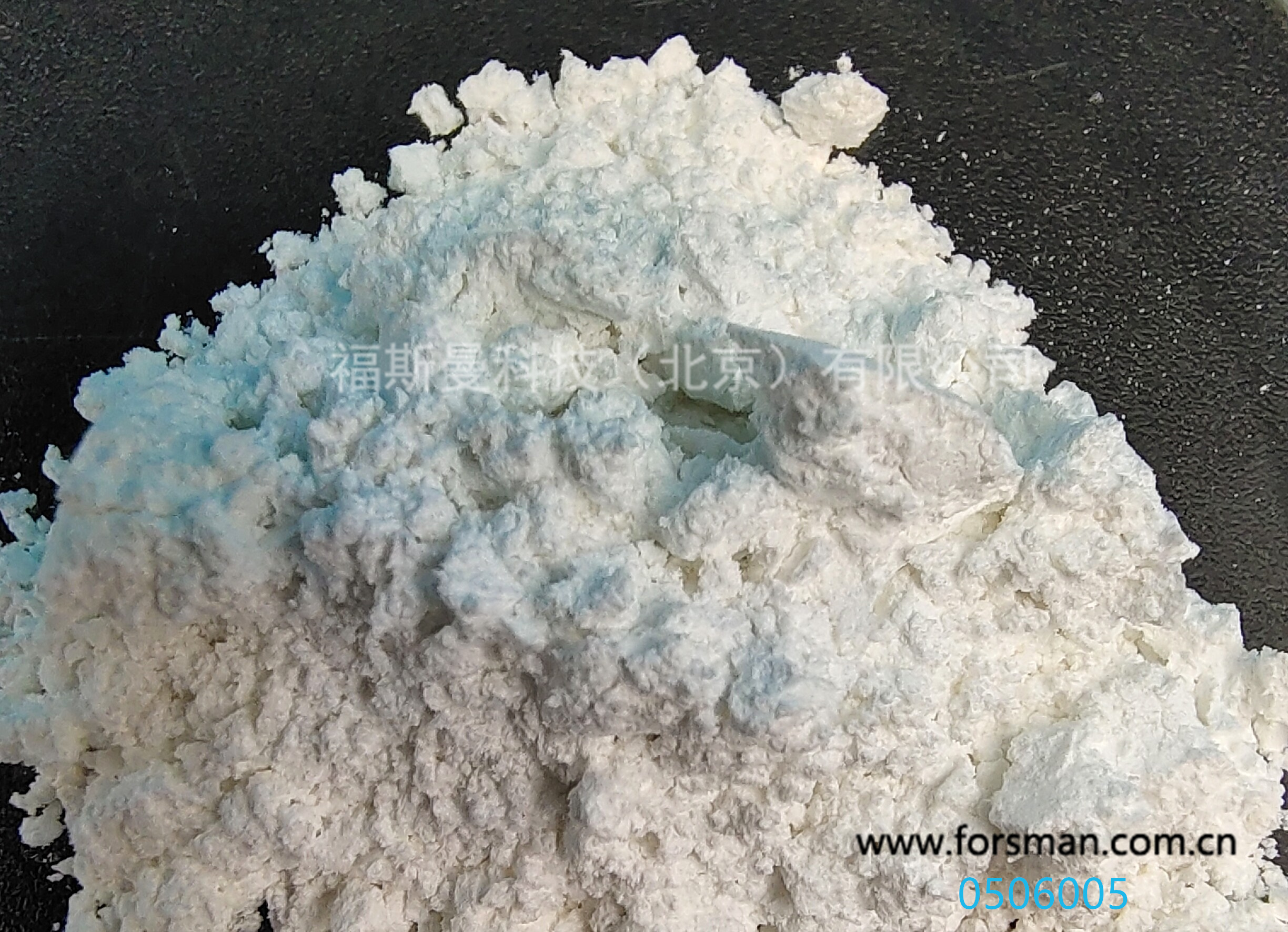

Product name: Boron nitride powder , hexagonal-phase

Molecular formula: BN

Molecular weight: 25.00

CAS#：10043-11-5

Melting point: 2700 °c

Density：2.27 g/cm³

Appearance form: white powder

Conductivity: 34 W/m·k

Mohs hardness: 1-2

Product name: Boron nitride powder, cube-phase

Molecular formula: BN

Molecular weight: 25.00

CAS#：10043-11-5

Appearance form: black or amber

Mohs hardness: 9.7

Thermal conductivity: 79.54 W/m·k

Storage method: Store in a cool, ventilated warehouse. The warehouse temperature should not exceed 37 °C, should be stored separately from oxidants and edible chemicals, avoid mixed storage, keep the container sealed, away from fire, heat source, the warehouse must be installed lightning protection equipment.

Uses of boron nitride

(1) Hexagonal boron nitride (H-BN) is a graphite lattice, which is loose, lubricating, easy to absorb moisture, light, insoluble and high temperature resistant white powder form. Hexagonal boron nitride has no obvious melting point and is resistant to chemical attack.

Hexagonal boron nitride is an excellent insulator with high thermal conductivity, high oxidation resistance, high chemical and thermal stability and good mechanical properties, and has important applications in composite material modification, sensors, field emitting devices, ultraviolet laser devices and antioxidant coatings.

(2) Cubic boron nitride (C-BN) is a synthetic material, its hardness is second only to diamond, belongs to superhard materials with high thermal stability and chemical inertness, so it is generally used as a material for manufacturing superhard tools.

The difference between hexagonal boron nitride and cubic boron nitride

The main difference lies in the different physical properties: hexagonal boron nitride is white, while cubic boron nitride is mostly black, amber, etc.; Hexagonal boron nitride is soft, while cubic boron nitride has high hardness; Hexagonal boron nitride can be used as a raw material to form cubic boron nitride; Hexagonal boron nitride has a wide range of uses, and cubic boron nitride is generally used to make CBN knives.

Product advantages

Forsman’s supplies boron nitride product classifications: boron nitride (hexagonal), boron nitride powder (cubic) according to the crystal structure; According to the microscopic form, there are boron nitride powder (hexagonal-H type), boron nitride powder (hexagonal, agglomeration powder), boron nitride powder (hexagonal, spherical); According to the processing technology, there are boron nitride powder (cubic, nickel plating), boron nitride powder (cubic, titanium plating); The particle size of the product can be customized at the μm and nm levels, and the purity of the product can reach 99%.

note：

Our factory gives priority to the supply of “kg or ton” large package products, such as 25kg, 100kg, 500kg and 1 ton, 10 ton products. If you need a smaller package of products, you can also call or leave a message to us, we provide you with customized services.The packaging can be customized according to the customer's feeding quantity.
