Basic Information：
Brand：Forsman
Molecular formula：ZrC
English Name:Zirconium carbide powder
Specifications:80nm-18μm
Purity:99%
CAS:12070-14-3
Manufacturers:Forsman
Alias:Zirconium carbide

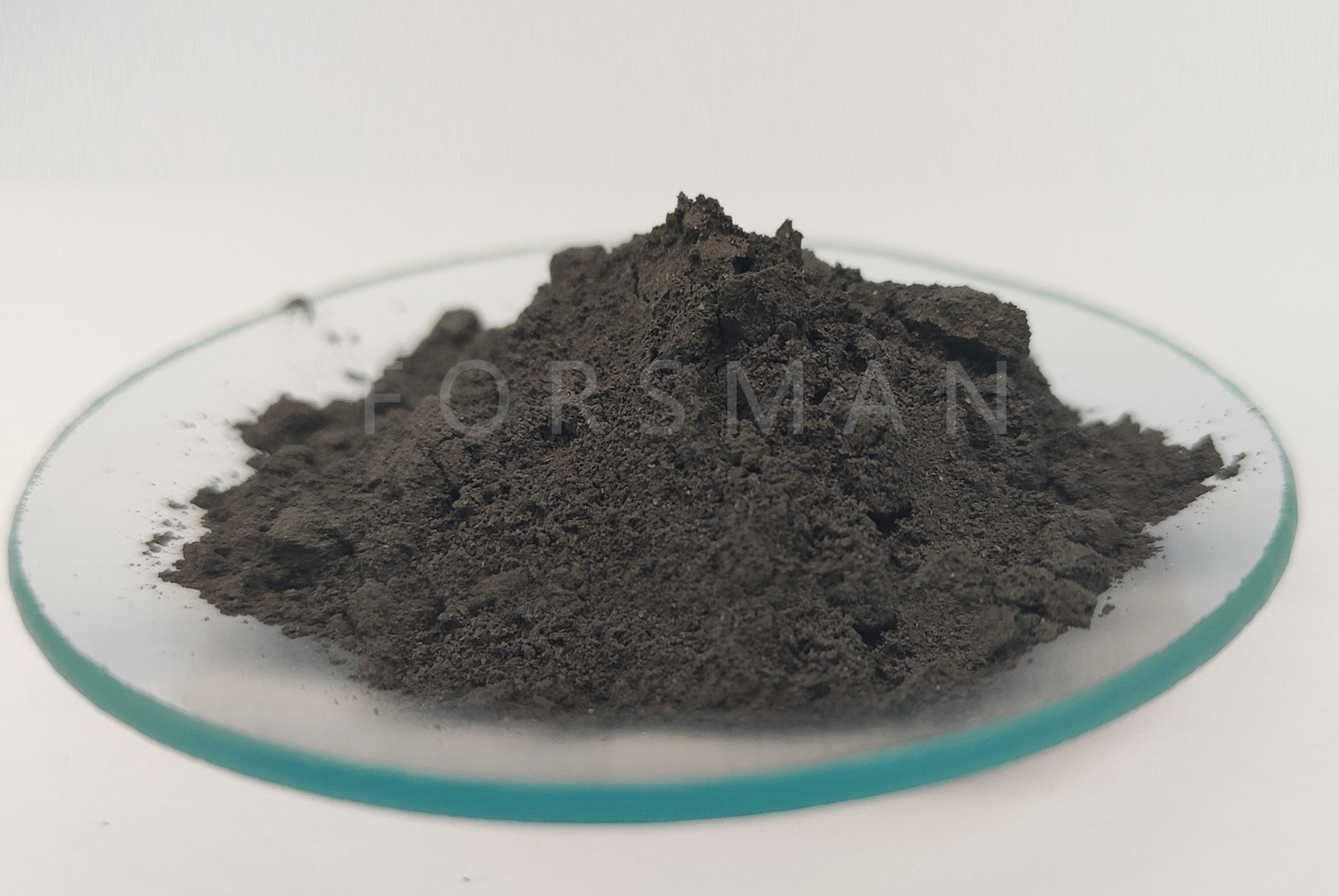

Color / Appearance:Dark gray powder
Main uses:Used as abrasives, alloy materials, ceramic materials, etc.
Packaging specifications:Customizable
Material Details:
Zirconium carbide is an inorganic compound, Molecular formula is ZrC.
Molecular weight: 103.2347.
Density 6.73.
Melting point 3540℃.
Boiling point 5100℃.
Resistivity 42 (μΩ-cm)
Electrical conductivity 2.3（104S/cm)
Coefficient of thermal expansion:6.7×10-6C-1
Chemical properties: small particle size, excellent chemical stability. Does not react with water. Soluble in acid.
Technological Advantages:
Forsman produces a wide range of zirconium carbide products in different sizes,
The products are available in 80nm, 200nm, 500nm, 0.8μm, 1-3μm, 5μm, 10μm, etc. and are in stock all year round.
Products are available at low and affordable prices. Please contact us for detailed information.
Packaging specifications can be customized according to customer requirements.
Main uses:
Used as abrasives, ceramic materials, chemical raw materials, industrial raw materials, etc. Widely used in chemical industry, chemical synthesis research, aerospace and other sectors.
Related papers
ZHANG Yuwei. Study on structure characterization and electrical properties of zirconium carbide[D].Wuhan University of Technology,2012.
Wang Xueying. Preparation and related mechanism of ultra-high temperature zirconium carbide precursor and nanopowder[D].Jingdezhen Ceramic University, 2022.
[3] Jia Qi,Xiong Lun,Zhang Junran. Study on the state equation and structural phase change of zirconium carbide under high pressure[J].Journal of Capital Normal University (Natural Science Edition), 2021,42(04):33-39.
Forsman's product features and technical advantages
(1) The appearance is gray and black gray powder, evenly distributed; (2) XRD detection is pure phase; Its low oxygen content and particle size can be customized (control D10 D50 D90 distribution range); (3) After testing, its combustion is stable and its thermal efficiency is high; (4) Its fluidity is better, the quality of spraying is good, it is easy to mold, and it does not clog the spinner;
Recommended product 1: Zirconium carbide 4004001 particle size 1μm
Product test report: XRD spectrum, SEM scanning electron microscopy, laser particle size map

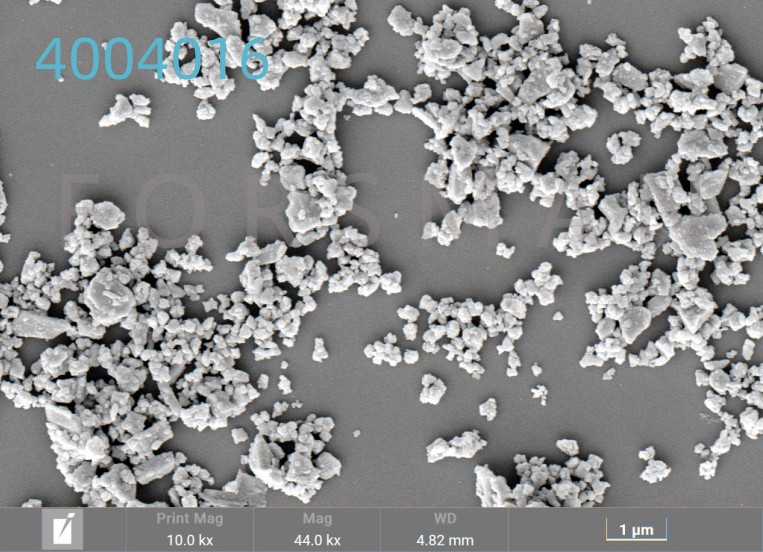

Recommended product 2: Zirconium carbide 4004016 particle size 0.8μm
Product purchase Q&A
Q: We use it in the lab, do you have small packages?
A: Yes, for laboratory needs, we generally have 100g/250g/500g/1kg and other packaging specifications to meet the needs of laboratory research users.
Q: I see that some companies offer 99.9% of the products, why don't you have such high-purity products?
A: The purity of the product is determined by many factors such as raw materials, production processes, testing methods and other aspects of the product. Different detection methods for the same material, may vary greatly in purity. In addition to purity concerns, you need to understand what the purity test method is to determine the reliability of this purity. It is quite possible that the actual purity of a 98% purity product and a product of 99.9% purity is much the same.
Q: I want to use sprayed zirconium carbide powder, do you have one?
A: Spraying powder also has a lot of differences, because different spraying methods, may be different for the particle size requirements of the powder, if you have a clear particle size requirements, we can customize, if there is no clear particle size requirements, you can tell us what spraying method, we help you choose several to try. If the demand is large, we can also granulate.
Related papers
[1] ZHANG Yuwei. Study on structure characterization and electrical properties of zirconium carbide[D].Wuhan University of Technology,2012.
[2] Wang Xueying. Preparation and related mechanism of ultra-high temperature zirconium carbide precursor and nanopowder[D].Jingdezhen Ceramic University, 2022.
[3] Jia Qi,Xiong Lun,Zhang Junran. Study on the state equation and structural phase change of zirconium carbide under high pressure[J].Journal of Capital Normal University (Natural Science Edition), 2021,42(04):33-39.
Forsman's product features and technical advantages
(1) The appearance is gray and black gray powder, evenly distributed; (2) XRD detection is pure phase; Its low oxygen content and particle size can be customized (control D10 D50 D90 distribution range); (3) After testing, its combustion is stable and its thermal efficiency is high; (4) Its fluidity is better, the quality of spraying is good, it is easy to mold, and it does not clog the spinner;
Recommended product 1: Zirconium carbide 4004001 particle size 1μm
Product test report: XRD spectrum, SEM scanning electron microscopy, laser particle size map
Recommended product 2: Zirconium carbide 4004016 particle size 0.8μm
Product purchase Q&A
Q: We use it in the lab, do you have small packages?
A: Yes, for laboratory needs, we generally have 100g/250g/500g/1kg and other packaging specifications to meet the needs of laboratory research users.
Q: I see that some companies offer 99.9% of the products, why don't you have such high-purity products?
A: The purity of the product is determined by many factors such as raw materials, production processes, testing methods and other aspects of the product. Different detection methods for the same material, may vary greatly in purity. In addition to purity concerns, you need to understand what the purity test method is to determine the reliability of this purity. It is quite possible that the actual purity of a 98% purity product and a product of 99.9% purity is much the same.
Q: I want to use sprayed zirconium carbide powder, do you have one?
A: Spraying powder also has a lot of differences, because different spraying methods, may be different for the particle size requirements of the powder, if you have a clear particle size requirements, we can customize, if there is no clear particle size requirements, you can tell us what spraying method, we help you choose several to try. If the demand is large, we can also granulate.
